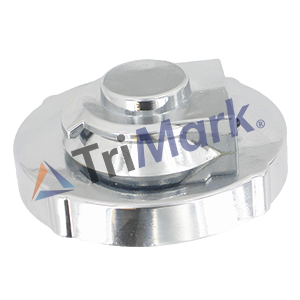

110-1000X Locking Fuel Cap

This locking fuel cap is designed for medium to heavy-duty off-highway vehicles where it is desirable to prevent theft and vandalism.  Featuring a KeyOne Plus modular locking system providing “One Key – One Vehicle” convenience, this robust product fits standard fuel filler necks 82.5 mm O.D. and 68.5 mm I.D.

Features/Benefits

  • Double sealed lock detail provides for maximum performance (the lock head is sealed from exposure and the lock cylinder has a second seal to prevent water from getting in the cap itself)
  • Fuel cap can be keyed to match other TriMark door products with KeyOne Plus for a single-key system, keyed alike or keyed random

Installation

  • Retrofitable design fits standard 1/4 turn fuel filler necks 82.5 mm O.D. and 68.5 mm I.D.

Material

  • Sturdy die cast zinc alloy cap and lock cover
  • Retainer and locking plate : zinc plated, mild steel
  • Filler gasket: 3mm neoprene rubber

Finish

  • Bright Chrome Plating on Cap and lock cover 120 hour salt spray tested
  • Steel components: zinc plated

Caution: Non-vented cap is designed for use only on diesel powered vehicles with properly vented fuel systems.

 Individual part dimensions are for reference only. Refer to individual part drawings for complete dimensions, specifications, and installation procedures. Engineering assistance and application drawings are available.

Typical Uses

Typical application use illustrations are organized by Industry/System and are intended to give the user some ideas for specifying a complete system using TriMark products.

Not all Industry/System applications have typical use illustrations. If a typical use illustration is not available for your specific application, please submit a technical product information request and a technical representative can assist you in selecting a product(s) solution for your specific application.
